Description
Product Description

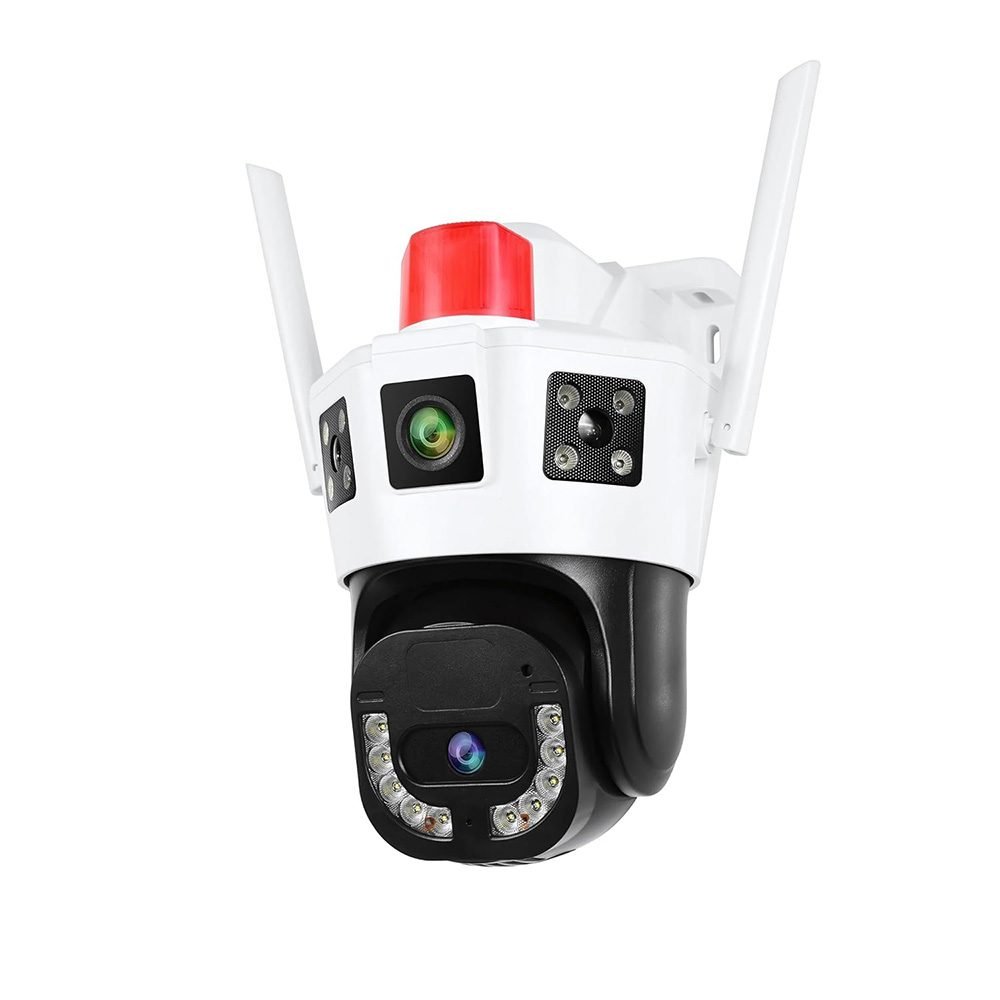

• H.265 6MP IP/Network Dual Light Red and blue alarm Turret Camera
• H.265/H.264 5MP IP/Network Dual Light Full Color Turret Camera • Up to 5 megapixel high resolution • Max. 2592*1944@25fps(50Hz/60Hz) • Support RTSP&Onv1f(17.2 with profile S) Compatible with many third-party NVRs and CMS • Support multiply Web Browsers: IE/Firefox/Chrome/Safari etc. • Day/Night, AWB/MWB,BLC, 3D-DNR,Shutter, IR-CUT, D-WDR,Mirror, Image Flip etc. Functions • 2.8mm F1.6 fixed lens • Water-proof: IP66
Specification
|
Image Sensor:
|
1/3”High sensitivity CMOS
|
|
Signal System:
|
PAL/NTSC
|
|
Min. Illumination:
|
Color: 0.05lux @(F1.6, AGC ON), 0 lux with IR or light
|
|
Shutter Time:
|
1/25 s to 1/10,000 s
|
|
Lens:
|
3.6mm F1.6 fixed lens
|
|
Day&Night:
|
2pcs Homologous Dual Light (Warm Light+IR LED Light)
|
|
Image Enhancement:
|
BLC/3D DNR
|
|
Motion Detection:
|
Support
|
|
Privacy Protection:
|
Support(4 Self-customized Areas)
|
|
Smart function:
|
Humanoid detection
|
|
Illumination for Infrared Switching:
|
0.5~3Lux
|
|
Infrared Wavelength:
|
850nm
|
|
Mimimum Illumination:
|
0 Lux(IR ON)
|
|
LED Light Distance
|
IR 25m/Warm light 20m
|
|
Wather-Proof:
|
IP66
|
|
Compression Standard
|
|
|
Video Compression:
|
H.265/H.264
|
|
Video Bit Rate:
|
512Kbps~6144Kbps(main stream H.265)
64kbps~1024Kbps(sub stream H.265) |
|
Dual Streams:
|
Yes
|
|
Triple Streams:
|
No
|
|
|
|
|
Image Resolution:
|
main stream:2592*1944(5MP)/2560×1440(4MP)/1920×1080(1080p)
sub stream:720×480(D1)/640×480(VGA)/640×360/352×288(CIF) |
|
Frame Rate:
|
main stream:25fps(5MP) max.
sub stream:25fps max |
|
Stream:
|
two streams
|
|
Image Settings:
|
3D NR, Image Flip, Saturation, Brightness, Contrast, Sharpness
adjustable via client software, web browser |
|
Day/Night mode
|
support Full color mode，auto switch mode（BW with IR led）,trigger mode(Humanoid triggers white light at night）
|
|
Audio
|
|
|
Audio Compression:
|
G711U/G711A/AAC
|
|
Audio Bitrate
|
64K(G711)/16k(AAC)
|
|
Audio In/Out：
|
Optional (RCA socket)
|
|
Build-in MIC：
|
Yes
|
|
Build-in speaker：
|
Yes
|
|
Volnume adject：
|
Yes
|
|
Network
|
|
|
Network Protocols:
|
Http/Https, TCP/IP, IPv4/v6, UPNP, RTSP/RTMP,FTP, UDP, SMTP, NTP, DHCP, DNS,
DDNS,IP Search(SupportNVR, NVS etc.) |
|
General Function:
|
Anti-Flicker, heartbeat, password protection, privacy mask, Watermark
|
|
System Compatibility:
|
ONVIF(17.2 with profile S)
|
|
On-line Viewing
|
Max. Support 2 Users Simultaneously
|
|
Interface
|
|
|
Communication Interface:
|
1 RJ45 10M / 100M Ethernet Interface
|
|
Audio Interface:
|
RCA Audio input/output Interface (Optional)
|
|
Alarm in/out interface：
|
Support（1ch） （Optional）
|
|
SD card interface
|
Support TF card（micro TF card，up to 256G）
|
|
DC Power Plug:
|
DC Power Femate Interface/POE
|
|
General
|
|
|
Operating Conditions:
|
-10 °C ~ 60 °C
|
|
Humidity 95% or less (non-condensing)
|
|
|
Power Supply:
|
12 V DC ± 10%/PoE
|
|
Power Consumption:
|
12 VDC ± 10%, Max Power Comsumption Less than 8W
(When the infrared lamps turn on) |
Packing & Deliver
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
